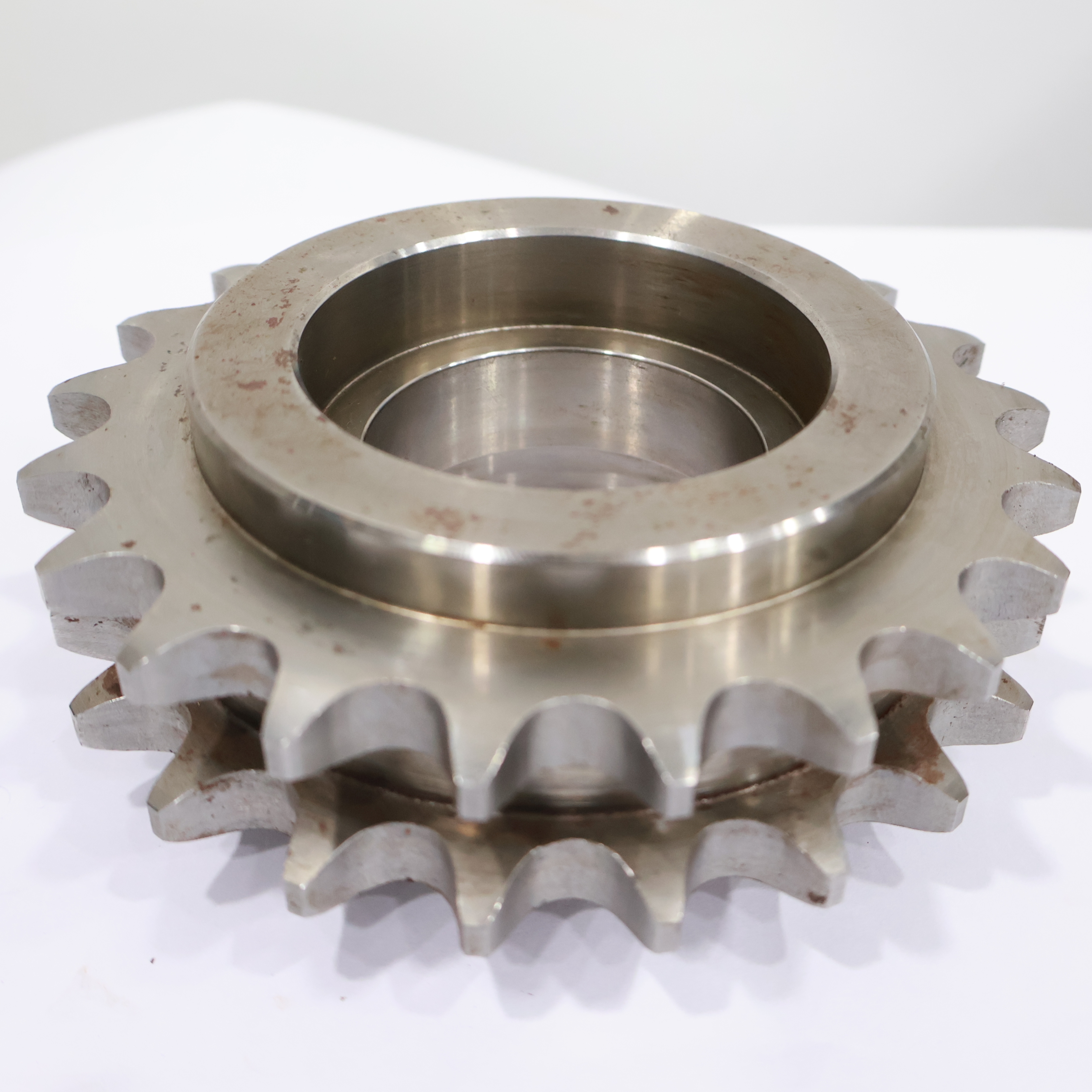

RS60-2B-21T Duplex Sprocket for Pallet Conveyors
Part Code: RS60-2B-21T
Part Name: Duplex Sprocket for Pallet Conveyors
Part Name: Duplex Sprocket for Pallet Conveyors
Part Code: RS60-2B-21T
Usage: This Sprocket used in Pallet Conveyors
Application of Pallet Conveyor Sprocket
Built for Automated Material Flow: Engineered specifically for pallet conveyance and heavy-load material handling across warehouse automation, distribution hubs, and manufacturing lines — ensuring smooth, uninterrupted movement.
Optimized for Continuous & High-Impact Operations: Designed to withstand continuous runtime, high start-stop cycles, and shock loads often seen in automated and semi-automated conveyor systems.
Reliable Under Tough Industrial Conditions: Crafted for environments demanding maximum durability, consistent performance, and low-maintenance operation, even under heavy pallet loads and rapid transfer speeds.
Summary
Pallet conveyor sprocket developed for high-reliability material transport, offering superior load-handling capacity, lower maintenance requirements, and long operational life for modern automated systems.
| Parameter | Value / Description |
|---|---|
| Application | Used in pallet conveyors and heavy-duty chain conveyor systems for materials handling and warehouse automation |
| Chain Standard | ANSI 60-2 (RS60-2) Duplex Roller Chain |
| Number of Teeth | 21 |
| Pitch | 19.05 mm (3/4") |
| Pitch Circle Diameter (PCD) | 127.82 mm |
| Outside Diameter (OD) | 136 mm |
| Bore Diameter | 54 mm (central), Ø68 H7 (bearing seat) |
| Keyway | Not Specified (add as per shaft in required) |
| Hub Diameter | Not explicitly shown (body diameter ~95 mm ext.) |
| Face Width (Total) | 50 mm |
| Width Between Faces | 30.32 mm (between sprocket teeth faces) |
| Groove/Slot Widths | 16 mm (distance between slots/shoulders) |
| Chamfer/Radius | 1 x 45° typical |
| Material Property | EN-8 (medium carbon steel, tough, wear-resistant) |
| Surface Treatment | Not stated; commonly zinc/phosphate/blackodised finishes |
| Total Weight | Not given (estimated 2–3 kg typical) |
| Teeth Details | As per DIN Standard profile |
| Sample Chain Pull (F) | 1500 N (typical for pallet conveyors) |
| Sample Sprocket Speed (N) | 40 RPM |
| Sample Torque (T) | ~76.6 Nm |
| Sample Power (P) | ~0.32 kW |
