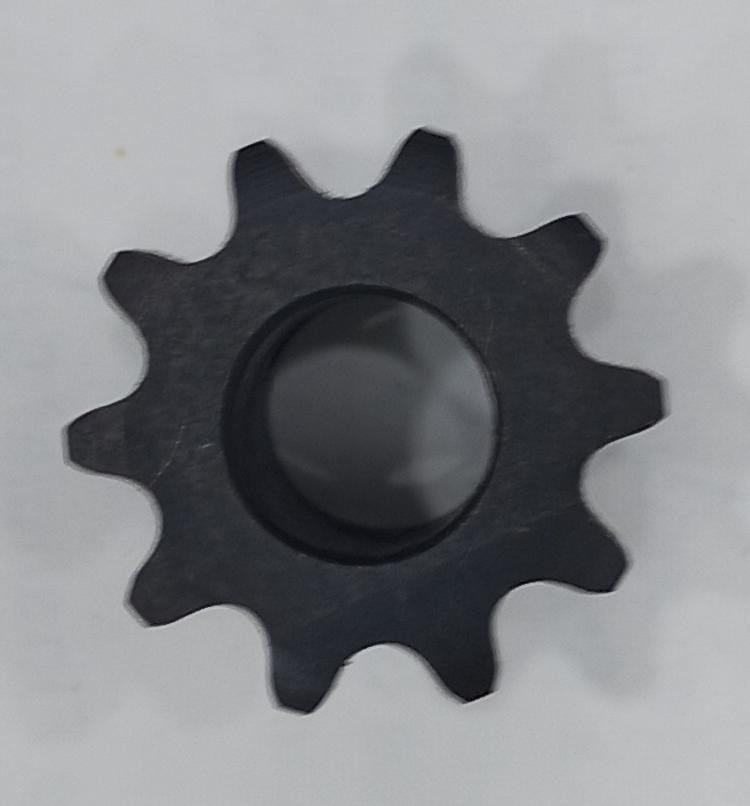

RS25-1B-10T Simplex Sprocket for Compact Machinery
Part Code: RS25-1B-10T
Part Name: Simplex Sprocket for Compact Machinery
Part Name: Simplex Sprocket for Compact Machinery
Part Code: RS25-1B-10T
Usage: This Sprocket is used for precise, small-scale chain drive in robotics, hobby mechanisms, and compact automation systems.
Application of Compact #25 Drive Sprocket for Robotics & Miniature Mechanisms
Designed for Small-Scale, High-Precision Power Transmission:
Used across robotics, hobby engineering, model vehicles, and compact automation systems, this sprocket enables smooth, efficient motion in tight spaces. Common applications include robotic actuators, mini conveyors, laboratory instruments, compact sorting units, and educational mechanical projects.
Optimized for Tight Spaces, Speed & Precision:
Its small bore, low tooth count, and compact geometry make it ideal for builds where space is limited and high rotational speed with moderate torque is required. Threaded mounting holes support secure installation in custom automation platforms and precision-driven assemblies.
Trusted by Robotics & Hobby Engineering Brands:
Frequently used by robotics kit manufacturers, custom automation integrators, laboratory equipment builders, and hobby-grade model makers. Compatible with systems from Flipsky, Makeblock, and any lightweight mechanism using #25 roller chain.
Summary
A compact, precision-focused sprocket engineered for robotics, model engineering, and miniature automation systems. It delivers smooth chain engagement, secure fitment, and reliable performance in small-format mechanical applications.
| Parameter | Value / Description |
|---|---|
| Application | Power transmission in small, compact, light-duty mechanisms; robotics, automation, small conveyor drives, hobby machines, model engineering, compact rollers |
| Chain Standard | ANSI #25 - Simplex Roller Chain |
| Number of Teeth | 10 |
| Pitch | 6.35 mm (1/4") |
| Pitch Circle Diameter (PCD) | ~20.61 mm (calculated, verify as per drawing) |
| Outside Diameter (OD) | ~23.37 mm (see drawing: Ø0.92" ≈ 23.37 mm) |
| Bore Diameter | 0.394" (10 mm, drawing shown) |
| Hub Diameter | 0.45" (11.43 mm) |
| Face Width (Overall) | 15 mm (~0.59") |
| Hub/Inner Width | 2.8 mm (~0.11") |
| Mounting Type | M5-6H thread holes, through bore (per drawing) |
| Material Property | Medium/High carbon steel, may be hardened |
| Surface Treatment | Black oxide, phosphate, or zinc plated |
| Teeth Details | Precision machined per ANSI/DIN standards |
| Total Weight | ~0.08–0.14 kg (approx., drawing based) |
| Sample Chain Pull (F) | 150–500 N (light-duty) |
| Sample Sprocket Speed (N) | 500–3000 RPM (robotics, hobby, model use) |
| Sample Torque (T) | 0.2–2 Nm |
| Sample Power (P) | Up to 0.04 kW |
