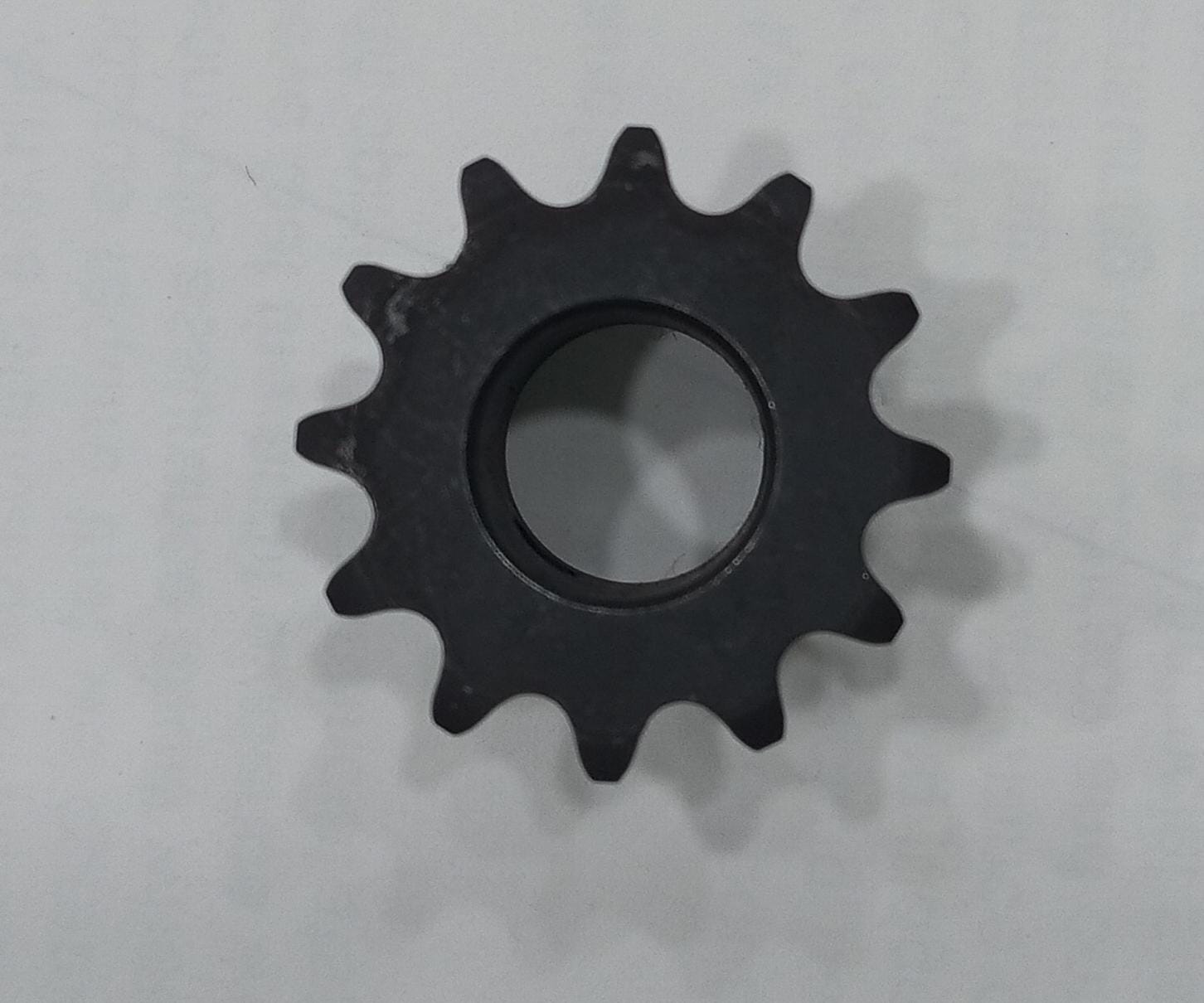

RS25-1B-25T Sprocket for Industrial Machinery and Automation
Part Code: RS25-1B-25T
Part Name: Sprocket for Industrial Machinery and Automation
Part Name: Sprocket for Industrial Machinery and Automation
Part Code: RS25-1B-25T
Usage: This Sprocket is used in Power transmission in compact machinery, automation systems, robotics, conveyors, milling machines, drilling machines, and harsh industrial environments.
Application of Compact RS25 Industrial & Automation Sprocket
Built for Precision Power Transmission in Compact Machinery:
Used across milling machines, drilling machines, CNC units, and other machine tools where a small, reliable, and smooth chain drive is essential. Also supports compact automation platforms such as Flipsky 7070 systems, robotic actuators, linear-motion modules, and precision positioning assemblies.
Optimized for Light-Duty Conveyors & Industrial Automation:
Commonly installed in miniature conveyor drives, packaging machinery, sorting stations, and compact assembly line mechanisms. Surface treatments like black oxide or zinc plating allow it to perform reliably in oily, dusty, and chemically aggressive environments.
Why This Sprocket Design Works So Well:
- Compact 1/4-inch pitch with a 25-tooth profile ensures smooth, stable motion in tight mechanical spaces.
- Multiple M5 threaded holes enable secure mounting in modular robotics and custom automation builds.
- Hardened steel construction with protective coating delivers long service life under repetitive load cycles.
- ANSI/DIN standard tooth geometry ensures universal chain compatibility and easy replacement worldwide.
Summary
A precision-machined RS25 sprocket built for machine tools, robotics, compact conveyors, and industrial automation. Designed for durability, accurate chain engagement, and dependable performance in tight or harsh operating conditions.
| Parameter | Value / Description |
|---|---|
| Application | Milling machines, drilling machines, conveyors, robotics (e.g., Flipsky 7070), automation equipment, compact industrial drives |
| Chain Standard | ANSI #25-1 Simplex Roller Chain |
| Number of Teeth | 25 |
| Pitch | 6.35 mm (1/4") |
| Pitch Circle Diameter (PCD) | ~51.1 mm (calculated for 25T, #25 chain) |
| Outside Diameter (OD) | Ø1.08" (27.43 mm, per drawing) |
| Bore Diameter | Ø0.472" (11.99 mm, per drawing) |
| Hub Diameter | Ø0.59" (14.99 mm, per drawing) |
| Face Width (Overall) | 0.59" (14.99 mm, per drawing) |
| Hub/Inner Width | 0.11" (2.79 mm, per section) |
| Shoulder Width | 0.36" (9.14 mm, per section) |
| Mounting Type | 2 x Ø0.17" through holes, M5-6H threaded holes |
| Material Property | Medium/high carbon steel, hardened |
| Surface Treatment | Black oxide, phosphate, or zinc plated |
| Teeth Details | Precision cut per ANSI/DIN standards |
| Total Weight | ~0.2–0.3 kg (approx., based on drawing) |
| Sample Chain Pull (F) | 600–1000 N (light/medium machinery) |
| Sample Sprocket Speed (N) | 300–1200 RPM (machinery typical) |
| Sample Torque (T) | 4–15 Nm |
| Sample Power (P) | Up to 0.10 kW |
| Induction Hardening | Recommended, 0.10–0.15 mm depth, 40–45 HRC |
