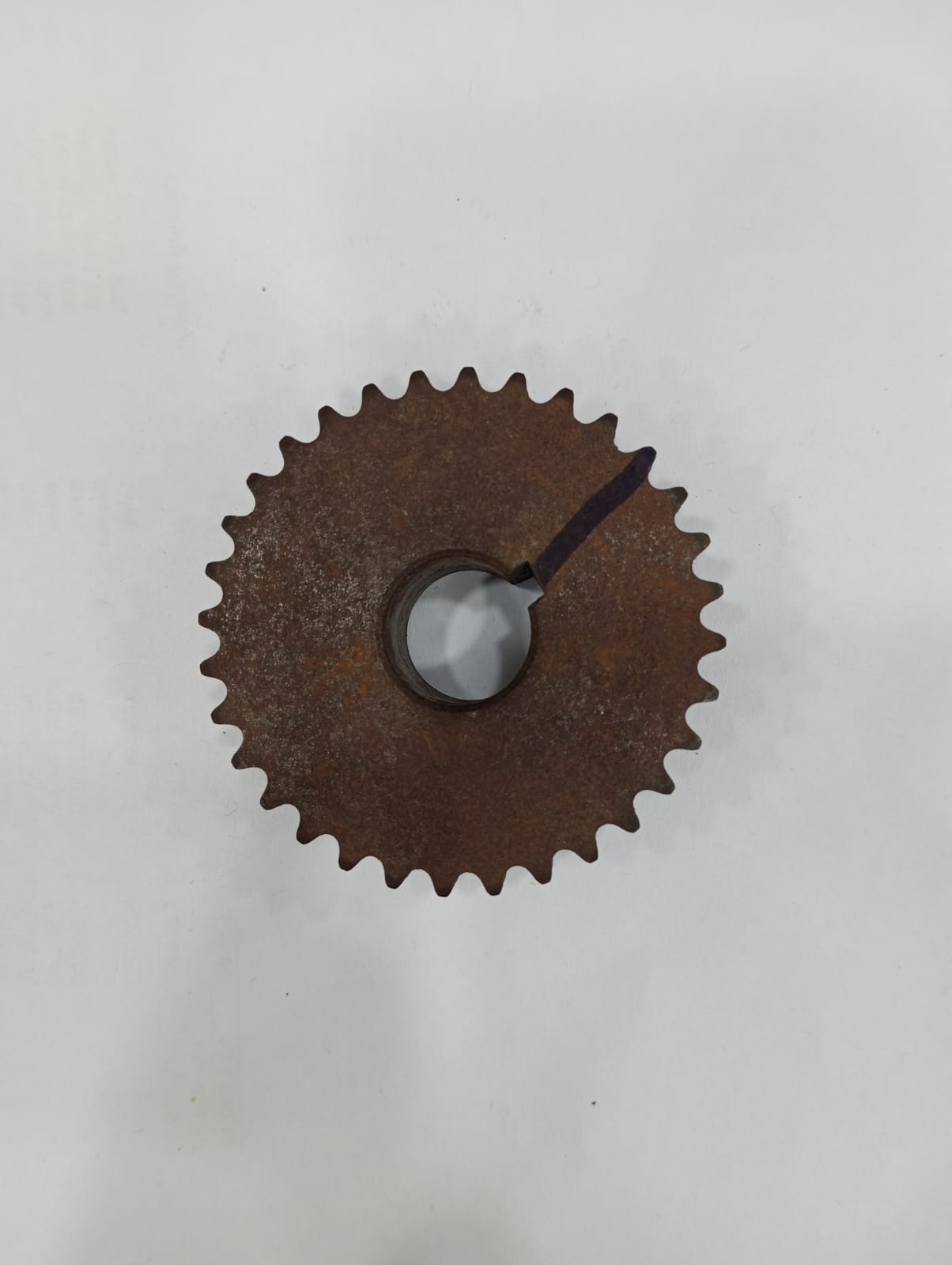

RS25-2B-32T Duplex Sprocket for Small Chain Conveyor
Part Code: RS25-2B-32T
Part Name: Duplex Sprocket for Small Chain Conveyor
Part Name: Duplex Sprocket for Small Chain Conveyor
Part Code: RS25-2B-32T
Usage: This Sprocket is used in precision chain conveyors requiring double-strand drive for higher torque and synchronized chain motion.
Application of Small Chain Conveyor Sprockets
Built for Compact, High-Precision Motion:
Designed for medium-duty conveyor drives and synchronized transfer systems, this sprocket delivers stable, accurate movement in packaging machines, indexing systems, and compact automation lines.
Optimized for Coordinated Dual-Chain Operation:
The duplex configuration ensures higher torque capacity, reduced slippage, and smooth, balanced motion—ideal for applications requiring reliable, continuous, and fast cycle performance.
Widely Used Across Modern Automation Machinery:
Adopted by packaging automation manufacturers, pharmaceutical and electronics assembly line builders, food handling system designers, and robotic/compact conveyor integrators.
Summary
A durable duplex sprocket engineered for compact conveyor and precision transfer systems, offering stronger torque, smoother dual-chain operation, and long service life in light-to-medium automation environments.
| Parameter | Value / Description |
|---|---|
| Application | Used in precision/double-strand chain conveyors, compact packaging machines, automation, or light-duty transfer lines with medium load and synchronized drive |
| Chain Standard | ANSI 25-2 (RS25-2B) Duplex Roller Chain (double strand) |
| Number of Teeth | 32 |
| Pitch | 6.35 mm (1/4") |
| Pitch Circle Diameter (PCD) | ~65 mm (calculated for 32T, actual may vary) |
| Outside Diameter (OD) | ~68 mm (estimated, dependent on profile) |
| Bore Diameter | 25 mm (H7 recommended for precision shaft fit) |
| Keyway | Recommend standard key per shaft size, optional for light duty |
| Hub Diameter | ~35–40 mm (recommended for bore size, duplex hub can be wider) |
| Face Width (Total) | 18–22 mm (typical for duplex RS25, double plate width) |
| Shoulder Width / Steps | 6–10 mm steps for mounting, check drawing for details |
| Mounting Holes | Optional, as per mounting requirement |
| Chamfer/Radius | 1 x 45° typical, small radii for chain engagement |
| Material Property | Mild Steel (MS) or case-hardened steel for increased wear resistance |
| Surface Treatment | Powder Coating or Blackening (recommended for corrosion resistance) |
| Teeth Details | As per DIN/ISO Standard profile |
| Total Weight | Approx. 0.6–1.0 kg (for this size, duplex strand) |
| Sample Chain Pull (F) | 400 N (higher load than simplex, double chain capacity) |
| Sample Sprocket Speed (N) | 75–100 RPM (typical for small-to-medium conveyors) |
| Sample Torque (T) | ~2.2 Nm (at PCD, double chain) |
| Sample Power (P) | ~0.018 kW (estimated, low/medium duty) |
| Induction Hardening | Optional: 0.05–0.12 mm case depth, 40–45 HRC for wear |
