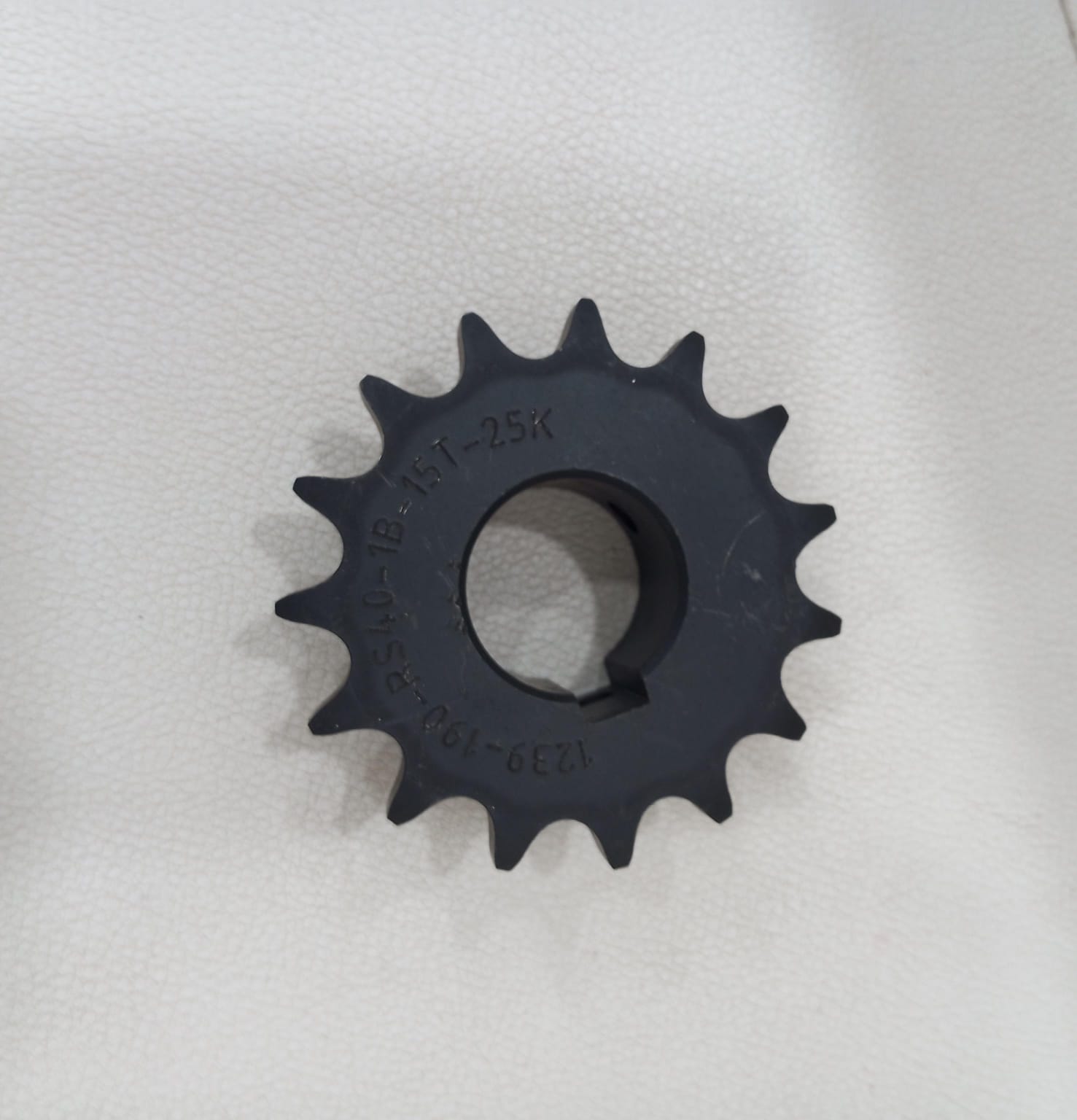

RS40-1B-15T Simplex Sprocket for Glass Conveyor
Part Code: RS40-1B-15T
Part Name: Simplex Sprocket for Glass Conveyor
Part Name: Simplex Sprocket for Glass Conveyor
Part Code: RS40-1B-15T
Usage: This sprocket is used in glass manufacturing conveyors for transporting glass panels.
Application of Glass Conveyor Sprocket
Engineered for High-Precision Glass Movement:
This sprocket is purpose-built for automotive and architectural glass conveyor systems, ensuring controlled and reliable transfer of glass sheets across cutting, washing, tempering, and assembly stages with consistent accuracy.
Optimized for Delicate Panel Handling:
Its simplex chain design supports smooth, low-shock operation—ideal for fragile glass panels that require vibration-free movement to prevent surface defects or stress cracks during high-speed production.
Trusted Across Advanced Glass Facilities:
Widely used by leading glass manufacturers and system integrators developing automated conveying solutions for auto glass, façade glass, and precision architectural applications.
Summary
A precision-machined sprocket designed for seamless and gentle handling of glass sheets in modern production lines, delivering dependable performance, reduced vibration, and enhanced operational efficiency.
| Parameter | Value / Description |
|---|---|
| Application | Used in glass manufacturing unit conveyors (e.g., Asahi India Glass) for moving glass panels, automotive glass through production, inspection, or tempering lines |
| Chain Standard | ANSI 40-1 (RS40-1B) Simplex Roller Chain |
| Number of Teeth | 15 |
| Pitch | 12.70 mm (1/2") |
| Pitch Circle Diameter (PCD) | 76.35 mm |
| Outside Diameter (OD) | 84 mm |
| Bore Diameter | 22 H7 mm (precision machined, +0.021/0 on drawing) |
| Keyway | 6 JS9 (+0.015/-0.015) mm |
| Hub Diameter | 57 mm |
| Face Width (Total) | 25 mm |
| Shoulder Width / Steps | 8.90 mm (-0.36) at front, 8 mm thick front plate |
| Mounting Holes | 2x M5 thru holes |
| Chamfer/Radii | 1 x 45° typical |
| Material Property | EN9 (medium carbon steel, improved wear resistance) |
| Surface Treatment | Blackening |
| Teeth Details | As per DIN Standard profile |
| Total Weight | Not given, estimated ~1 kg typical |
| Sample Chain Pull (F) | 400 N (light-medium conveyor duty, as typical for RS40) |
| Sample Sprocket Speed (N) | 65 RPM (glass conveyor, moderate speed) |
| Sample Torque (T) | ~4.5 Nm |
| Sample Power (P) | ~0.03 kW |
| Induction Hardening | Teeth induction hardened to 0.05–0.15 mm depth, hardness 40–45 HRC |
