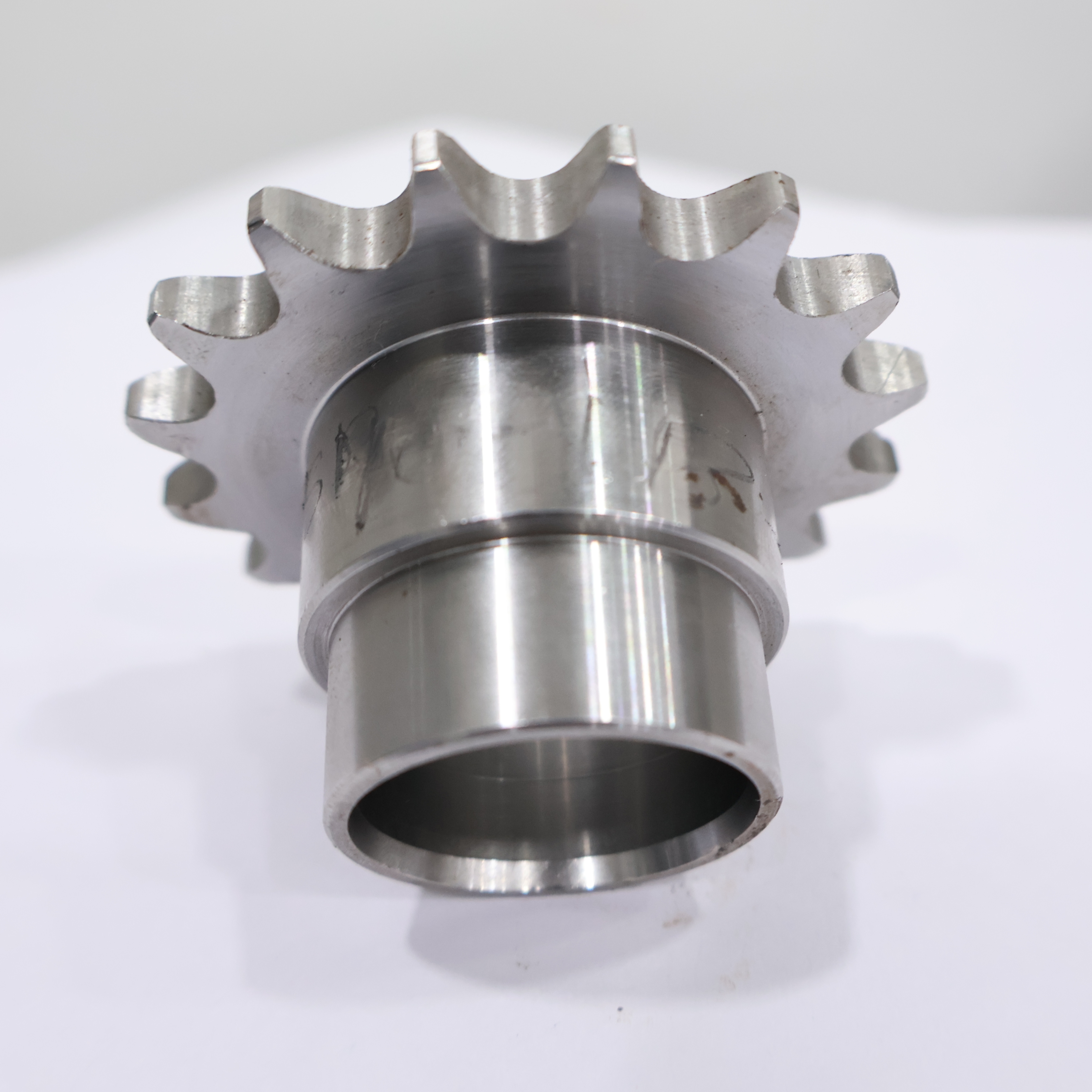

RS40-1B-16T Simplex Sprocket for PET Blowing Machine Conveyor

Part Code: RS40-1B-16T

Part Name: Simplex Sprocket for PET Blowing Machine Conveyor

Call to Order 9650338333
PET Blowing Machine Conveyor Sprockets

Part Name: Simplex Sprocket for PET Blowing Machine Conveyor
Part Code: RS40-1B-16T
Usage: This Sprocket used in PET blowing machine conveyors for bottle manufacturing.

Application of PET Blowing Machine Conveyor Sprocket

Engineered for Smooth PET Handling:
Designed for PET blowing machine conveyors, this sprocket enables efficient transfer and synchronized indexing of PET preforms and bottles throughout the bottle molding and conveying process.

Optimized for High-Speed Packaging Lines:
Ideal for beverage, edible oil, cosmetic, and household-product bottling plants where continuous, high-volume movement demands stable, low-vibration performance.

Industry-Ready for PET Processing Plants:
Commonly used across PETPLAST, Parle Agro, Bisleri, Manjushree Technopack, and various other PET bottle manufacturing and packaging machinery facilities.

Summary

A reliable conveyor sprocket engineered for PET blowing machines, offering smooth product transfer, high-speed compatibility, and durable performance in demanding PET bottle production environments.

Parameter Value / Description
Application Used in PET blowing machine conveyors for bottle production and transfer in bottling plants
Chain Standard ANSI 40-1 (RS40-1B) Simplex Roller Chain
Number of Teeth 16
Pitch 12.70 mm (1/2")
Pitch Circle Diameter (PCD) 63 mm
Outside Diameter (OD) 70 mm
Tooth Width Not specified (see drawing, typically 8–9 mm)
Face/Overall Width 56.0 mm (+0.20/-0)
Hub/Boss Overall Dia. 40 mm
Hub (bearing seat) Ø35.0 +0.01/+0.00 mm (rear fit); Ø30.12 +0.01/+0.00 mm (front), Ø30 +0.01/+0.00 mm (body)
Shoulder width 40 mm (front width, see drawing for details)
Keyseat/Bore Details Bore Ø30 mm (H7 tolerance, 30 +0.01/+0.00 mm)
Relief Chamfers 1.00 x 45° chamfer typical
Slot/Feature Details Special relief, 6.4 mm, 3.25 mm features, side bosses
Material Property Mild Steel (MS) or as specified for PET line
Surface Treatment Powder Coating
Induction Hardening Recommended: 0.05–0.15 mm case depth, 40–45 HRC for high cycle durability
Teeth Details As per DIN Standard profile
Total Weight Approx. 0.8–1.2 kg (estimated)
Sample Chain Pull (F) 800 N (typical for PET conveyor duty)
Sample Sprocket Speed (N) 40 RPM
Sample Torque (T) ~7.75 Nm
Sample Power (P) ~0.033 kW (estimated)
