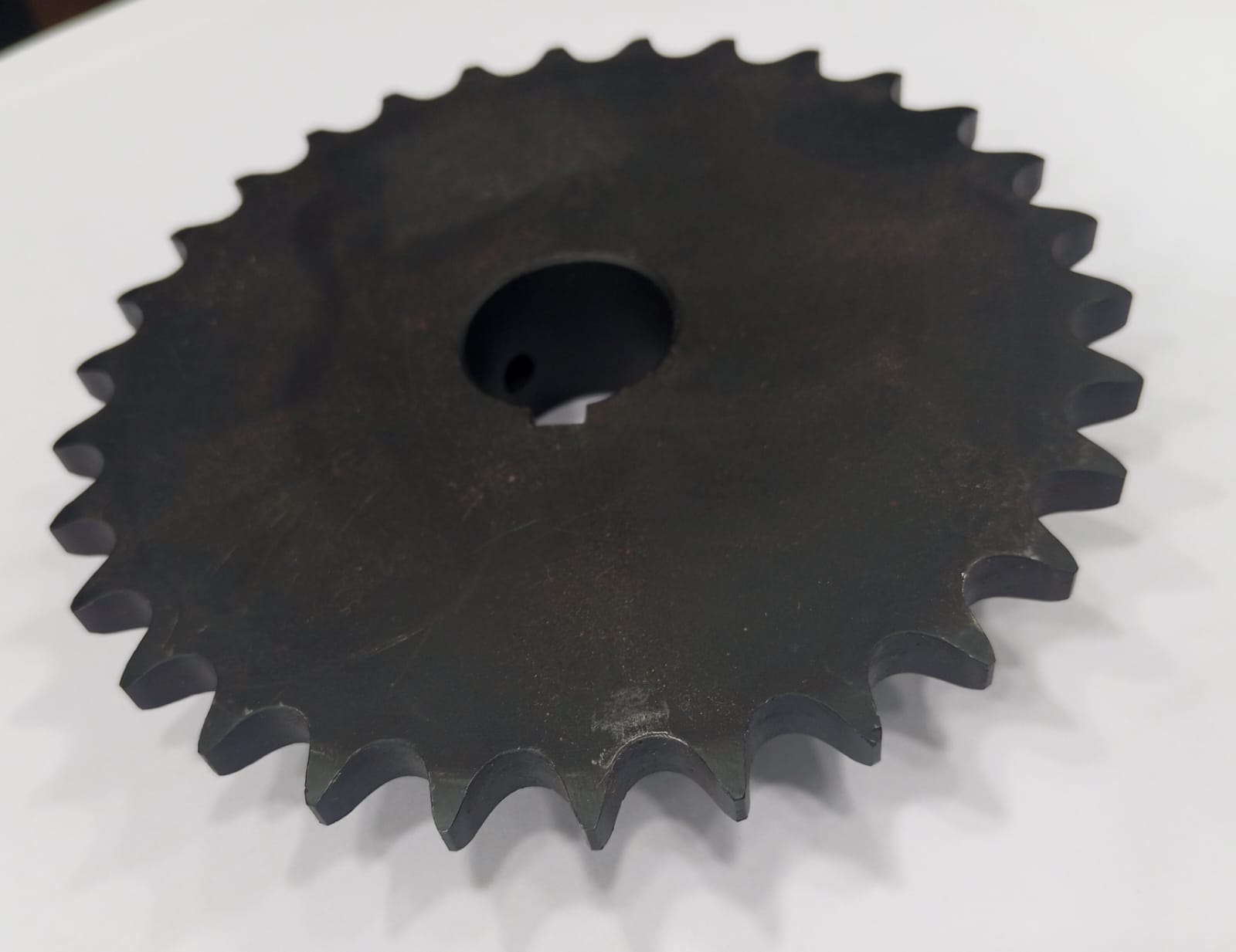

RS40-1B-30T Simplex Sprocket for Wimpy Snowblower
Part Code: RS40-1B-30T
Part Name: Simplex Sprocket for Wimpy Snowblower
Part Name: Simplex Sprocket for Wimpy Snowblower
Part Code: RS40-1B-30T
Usage: Drives auger or impeller in Wimpy snowblower by heavy-duty #40 roller chain.
Application of Wimpy Snowblower Auger/Impeller Drive Sprocket
Built for Reliable Snow-Clearing Power Transmission:
Engineered for Wimpy snowblower machines, this sprocket drives the auger or impeller mechanism through a #40 roller chain system. It ensures efficient power transfer from the engine or gearbox to the snow-moving components for steady, uninterrupted operation.
Optimized for Cold, Abrasive & High-Load Winter Conditions:
Designed to perform in harsh winter environments where snow, ice, and grit demand consistent torque, balanced speed, and strong mechanical endurance. Ideal for auger and impeller assemblies that face continuous rotation, resistance, and heavy intake loads.
Trusted in Snowblower Mechanisms for Precision & Durability:
Widely used in consumer and commercial snowblower units requiring dependable, long-life sprockets. Its Type-B hub design offers secure mounting and simplified shaft alignment, while optional hardened teeth enhance wear resistance.
Summary
A robust, cold-ready sprocket developed for Wimpy snowblower auger and impeller systems. It delivers smooth power transmission, reliable torque output, and durable performance in challenging winter clearing conditions.
| Parameter | Value / Description |
|---|---|
| Application | Used in Wimpy snowblower machines for auger/impeller drive mechanism, where it delivers rotary power from the engine or transmission gearbox to the snow-moving components via a #40 roller chain system. |
| Chain Standard | ANSI #40-1 Simplex Roller Chain |
| Number of Teeth | 30 |
| Pitch | 12.7 mm (1/2") |
| Pitch Circle Diameter | ~122.4 mm (verify drawing for exact value) |
| Outside Diameter (OD) | ~128.5 mm (verify per drawing) |
| Tooth Profile/Width | Standard ANSI/DIN (per attached drawing) |
| Face/Overall Width | Typically 7–10 mm (see actual drawing) |
| Hub/Boss Diameter | Per drawing (customized for Wimpy snowblower) |
| Bore Diameter | Rough bore; final size per machine spec |
| Keyway/Bore Details | As shown in drawing (keyway/set screw ready) |
| Mounting Holes | Provided if required for set screw/hub (drawing) |
| Material Property | Medium carbon steel or EN8 (can be hardened) |
| Surface Treatment | Blackening or zinc plating (corrosion resistance) |
| Teeth Detail | Precision cut/tooth hardening possible |
| Total Weight | ~0.7–1 kg (approx.; confirm drawing) |
| Sample Chain Pull (F) | ~1800–2200 N (snowblower auger spec) |
| Sample Sprocket Speed | 80–200 RPM typical for snowblower augers |
| Sample Torque (T) | ~25–40 Nm |
| Induction Hardening | Recommended for high wear (0.10–0.18 mm, 40–45 HRC) |
