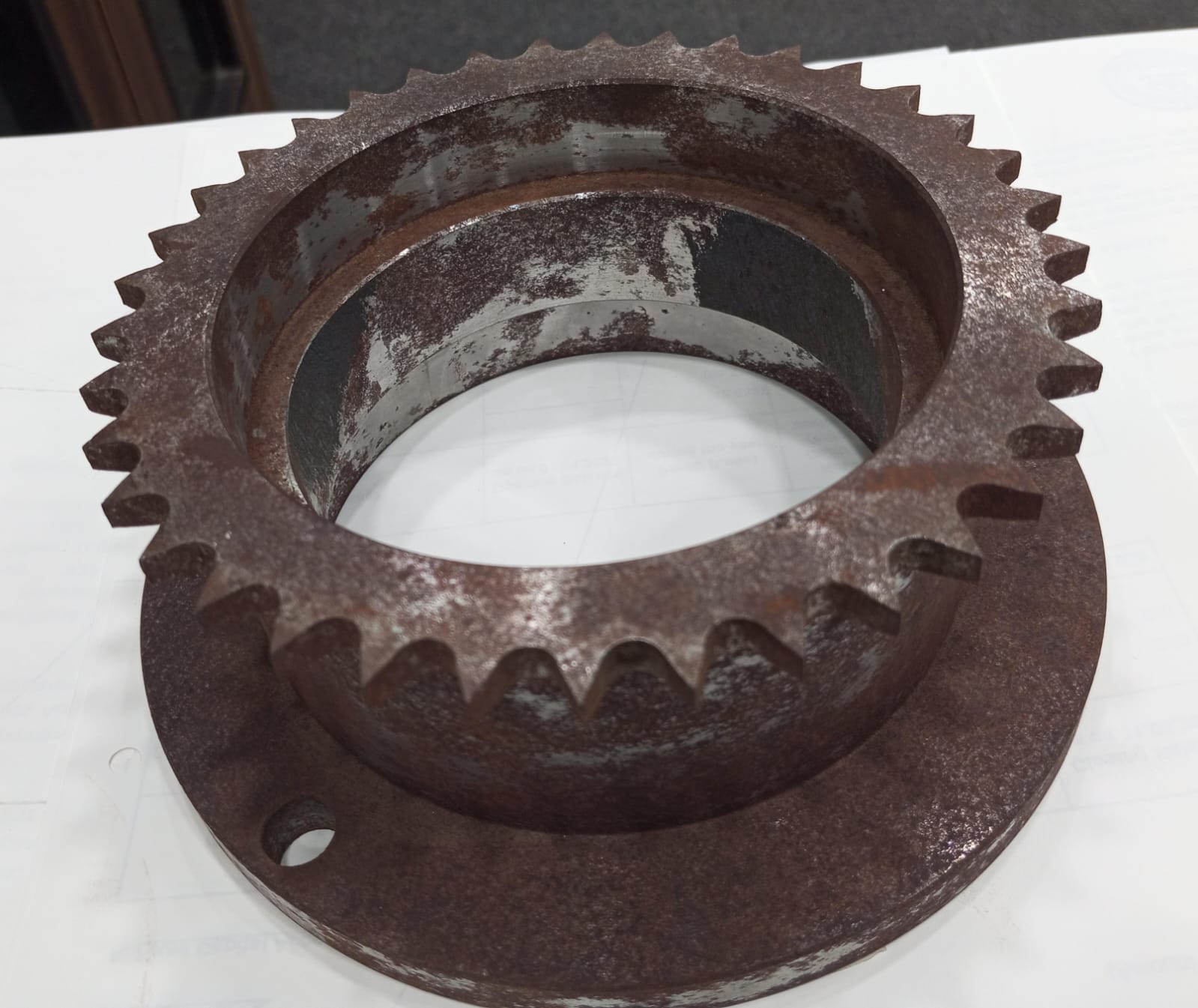

RS40-1B-37T Simplex Sprocket for Auger Filling Machine
Part Code: RS40-1B-37T
Part Name: Simplex Sprocket for Auger Filling Machine
Part Name: Simplex Sprocket for Auger Filling Machine
Part Code: RS40-1B-37T
Usage: This Sprocket is used in Drives auger rotation in auger filling machines for controlled dispensing and flow of powders, granules, and semi-solid materials.
Application of Auger Filling Machine Drive Sprocket (RS40-1B-37T)
Built for Precision Powder & Granule Dispensing:
Used in auger filling machines across food, pharmaceutical, cosmetic, and chemical industries. This sprocket drives the auger shaft via a #40 roller chain, ensuring precise, consistent, and controlled material flow during filling operations.
Optimized for Torque, Accuracy & Continuous Operation:
Designed with a 37-tooth profile that balances torque and rotation speed, enabling smooth material movement without clogging or overflow. The large 100 mm bore and robust hub support heavy auger shafts and continuous-duty performance in industrial packaging environments.
Trusted by Global Filling Machine Manufacturers:
Commonly used by All-Fill, Nichrome, Shree Bhagwati, Accutek, Vtops, and similar OEMs in automated filling lines. Suitable for handling powders (flour, coffee, spices, protein), granules (sugar, seeds, salt), pastes (creams, sauces), and chemical products.
Summary
A heavy-duty, precision-engineered sprocket designed for auger filling machines. It ensures accurate, reliable power transfer to the auger shaft—delivering smooth, consistent dispensing of powders and granules in industrial packaging setups.
| Parameter | Value / Description |
|---|---|
| Application | Auger filling machines (powder, granule, paste dispensing), packaging machinery, food processing, pharmaceutical filling, chemical dosing systems |
| Chain Standard | ANSI #40-1 Simplex Roller Chain |
| Number of Teeth | 37 |
| Pitch | 12.7 mm (0.5") |
| Pitch Circle Diameter (PCD) | ~150.38 mm (calculated for 37T, #40 chain) |
| Outside Diameter (OD) | Ø176.00 mm (per drawing) |
| Bore Diameter | Ø100.00 mm (per drawing) |
| Hub Diameter | Ø115.00 (+0.020/-0.015) mm (per drawing) |
| Face Width (Overall) | 68.50 mm (per drawing) |
| Hub Width | 50.20 mm (per section A-A) |
| Flange/Extended Width | 20.50 mm each side (per section A-A) |
| Shoulder Width | 6.70 mm + 11.60 mm (per section) |
| Mounting Holes | Ø12.00 mm through holes (2 positions, per drawing) |
| Material Property | Medium/high carbon steel, hardened |
| Surface Treatment | Black oxide, zinc plated, or phosphate coated |
| Teeth Details | Precision machined per ANSI/DIN standards |
| Total Weight | ~4.5–6 kg (approx., based on drawing) |
| Sample Chain Pull (F) | 1800–2500 N (packaging/filling machinery) |
| Sample Sprocket Speed (N) | 30–150 RPM (auger filling typical) |
| Sample Torque (T) | 35–80 Nm |
| Sample Power (P) | 0.15–0.50 kW |
| Induction Hardening | Recommended, 0.12–0.18 mm depth, 40–48 HRC |
