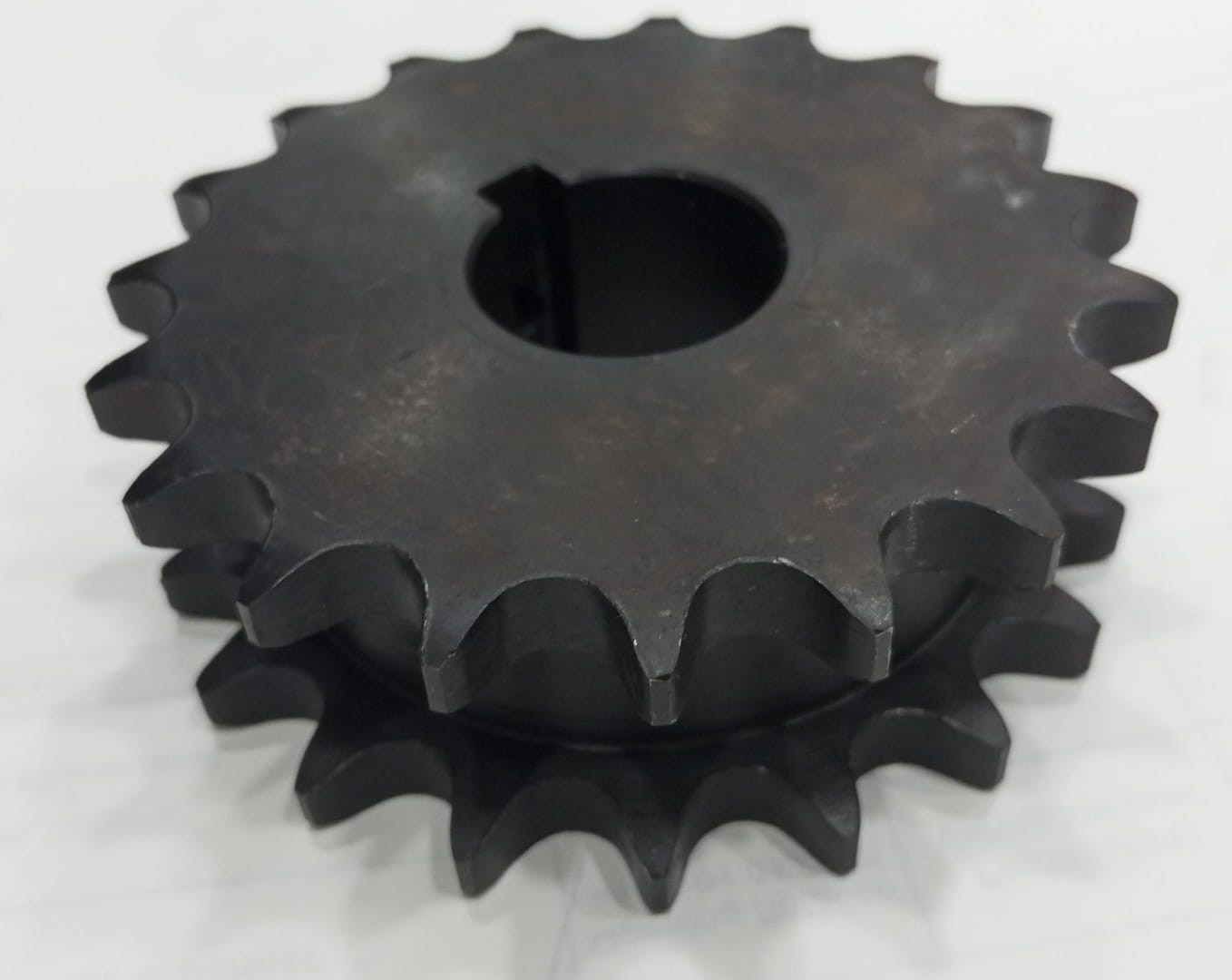

RS50-2B-19T Duplex Sprocket for H-Beam PTW Machine
Part Code: RS50-2B-19T
Part Name: Duplex Sprocket for H-Beam PTW Machine
Part Name: Duplex Sprocket for H-Beam PTW Machine
Part Code: RS50-2B-19T
Usage: This Sprocket is the manufacturing of H-beam PTW welding machines for main roller chain drive.
Application of H-Beam PTW Welding Machine Duplex Drive Sprocket
Built for Heavy-Duty Power Transmission in Welding Lines:
Used in H-beam PTW (Profile Travel Welding) machines to deliver robust duplex roller chain drive performance. This sprocket ensures reliable torque transfer and synchronized motion across multiple welding axes during structural beam fabrication..
Optimized for High Load, Precision, and Durability:
Engineered with a duplex (double-strand) chain design to handle greater torque and load capacity. The dual-hub construction enhances rigidity, ensuring vibration-free, stable power transmission under demanding welding operations. Made from EN-8 steel with a blackened surface finish for superior wear and corrosion resistance in industrial environments.
Trusted by Leading Welding Equipment Manufacturers:
Used by Mansoori Weldarc Pvt. Ltd., Weldarc Automation, Mitool Equipments, Technocrat Automation, Weldwell Speciality Pvt. Ltd., and Sree Sai Equipments—as well as other heavy fabrication and steel structure machinery producers.
Summary
A high-strength, duplex sprocket designed for H-beam PTW welding machines, ensuring dependable, smooth, and long-lasting power transmission in heavy fabrication setups.
| Parameter | Value / Description |
|---|---|
| Application | Used in the manufacturing of H-beam PTW welding machines for main roller chain drive and load transfer |
| Chain Standard | ANSI 50-2 (RS50-2B) Duplex Roller Chain |
| Number of Teeth | 19 |
| Pitch | 15.875 mm (5/8") |
| Pitch Circle Diameter (PCD) | Ø104.7 mm (per drawing) |
| Outside Diameter (OD) | Ø30.00 (+0.04/+0.05) mm (per drawing) |
| Bore Diameter | Ø78.00 mm (per drawing) |
| Keyway | 8.00 (+0.10/-0.10) mm (per drawing) |
| Hub Type | Double hub (center boss both sides) |
| Hub/Boss Diameters | Ø87.5 mm (main hub, per drawing) |
| Hub Widths | 18.00 mm center section (per section A-A) |
| Face Width (Total) | 35.00 mm (per drawing) |
| Inner Hub Width | 8.50 (+0.01/0.00) mm (per section A-A) |
| Detail B Dimensions | 12.7 mm height, 8.6 mm + 4.1 mm steps, 2.0 mm + 4.5 mm + 2.0 mm widths, TRUE R17.9 (per detail B) |
| Mounting Holes | Ø6.80 mm THRU ALL, M8x1.25 - 6H THRU ALL (per drawing) |
| Radii | R5.11, TRUE R17.9 (per drawing and detail B) |
| Relief/Features | Chain clearance profiles, 3.40 mm depth (per drawing) |
| Material Property | EN-8 (medium carbon steel) |
| Surface Treatment | Blackening |
| Total Weight | Estimated ~2.5–3.5 kg |
| Teeth Details | As per DIN/ISO standard |
| Sample Chain Pull (F) | 3500 N |
| Sample Sprocket Speed (N) | 25 RPM |
| Sample Torque (T) | ~183 Nm |
| Sample Power (P) | ~0.48 kW |
| Induction Hardening | Optional, 0.12–0.18 mm depth, hardness 40–48 HRC |
