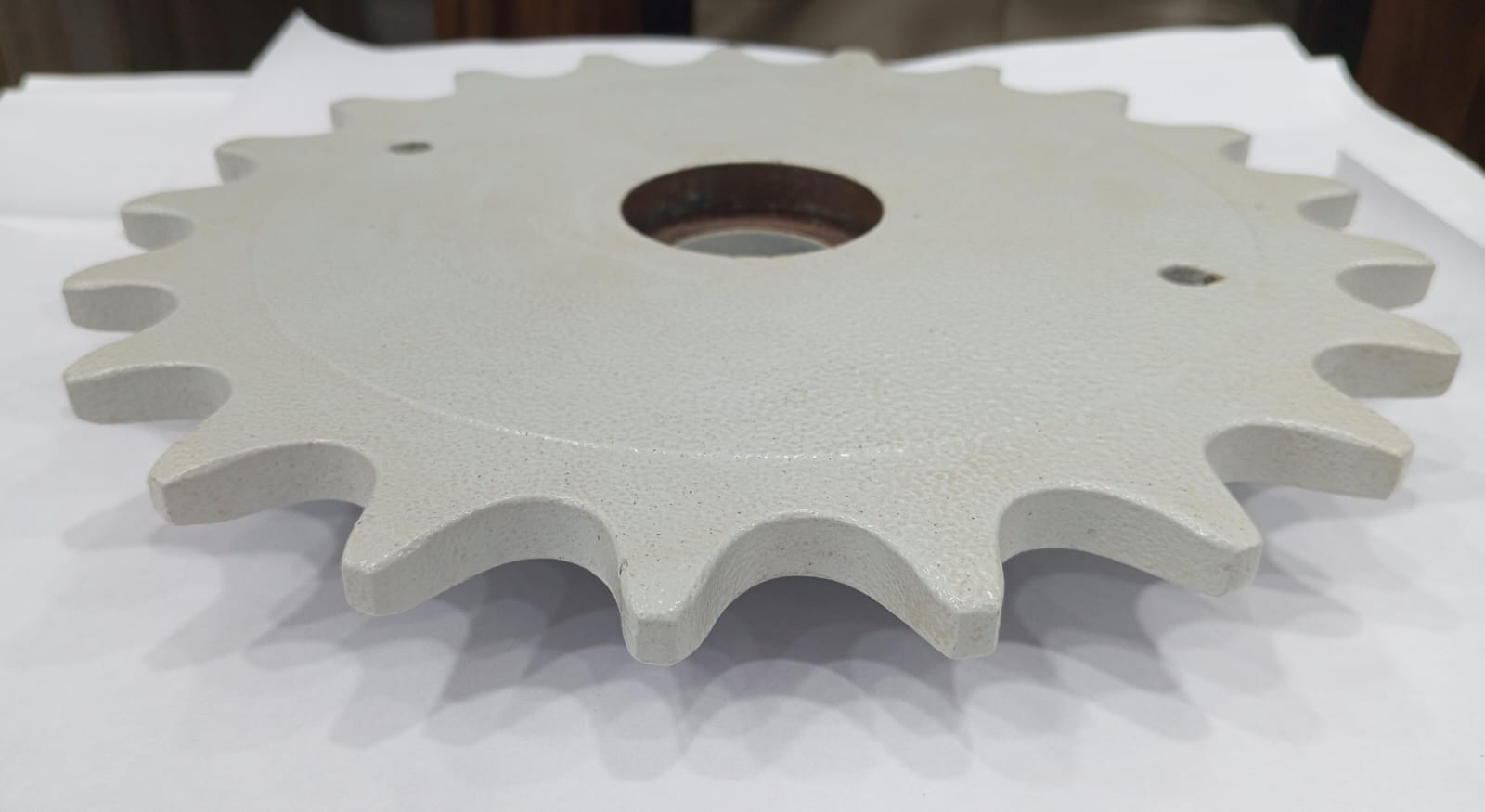

RS100-1B-21T Simplex Sprocket for Z-Elevator Conveyor
Part Code: RS100-1B-21T
Part Name: Simplex Sprocket for Z-Elevator Conveyor
Part Name: Simplex Sprocket for Z-Elevator Conveyor
Part Code: RS100-1B-21T
Usage: This Sprocket Used in Z elevator conveyors in food packaging companies.
Application of Z-Elevator Conveyor Sprocket
Engineered for Vertical Product Lifting:
Designed for Z-elevator systems used in food packaging operations, this sprocket enables smooth and reliable vertical transfer of materials between multiple levels of automated packing lines.
Optimized for Continuous Packaging Processes:
Ideal for handling snacks, pouches, bottles, beverages, and granular products where controlled lifting and consistent flow are essential for high-speed production efficiency.
Industry-Ready for Modern Food Plants:
Commonly used across food packaging units, snack factories, beverage facilities, and automated filling lines that depend on stable vertical conveying performance.
Summary
A purpose-built sprocket for Z-elevator conveyors, delivering smooth vertical lifting, precise chain engagement, and dependable performance in automated food packaging environments.
| Parameter | Value / Description |
|---|---|
| Application | Used in Z elevators (Z conveyors) for vertical material lifting and transfer in food packaging companies |
| Chain Standard | ANSI 100-1 (RS100-1B) Simplex Roller Chain |
| Number of Teeth | 21 |
| Pitch | 31.75 mm (1.25") |
| Pitch Circle Diameter (PCD) | (approximate, scaled down from prior: ~213.1 mm) |
| Outside Diameter (OD) | (approximate, scaled down: ~229 mm) |
| Tooth Width | 19.15 mm (at top land) |
| Face/Overall Width | 53.20 mm (main body + hub features) |
| Hub/Boss Overall Dia. | 69.00 mm (hub end); 56.00 mm (shoulder fit); 52.00 mm (bearing seat) |
| Hub (bearing seat) | Ø52.00 +0.02/+0.00 mm (main fit); Ø32.00 +0.20/+0.10 mm (bore) |
| Shoulder width | 35.00 mm |
| Keyseat/Bore Details | Bore Ø32.00 mm (main center, as per your drawing) |
| Relief Chamfers | 2.00 x 45°, 3.00 x 45°, and fillets as per details |
| Slot/Feature Details | Shown includes relief, special side details, profile |
| Material Property | Mild Steel (MS) |
| Surface Treatment | Powder Coating |
| Induction Hardening | Recommended: 0.05–0.15 mm case depth, 40–45 HRC for high cycle durability |
| Teeth Details | As per DIN Standard profile |
| Total Weight | Approx. 5–7 kg (estimated, slightly lighter than 22T) |
| Sample Chain Pull (F) | 2500 N (typical for Z elevator) |
| Sample Sprocket Speed (N) | 30 RPM |
| Sample Torque (T) | ~85 Nm (estimated) |
| Sample Power (P) | ~0.27 kW (estimated) |
