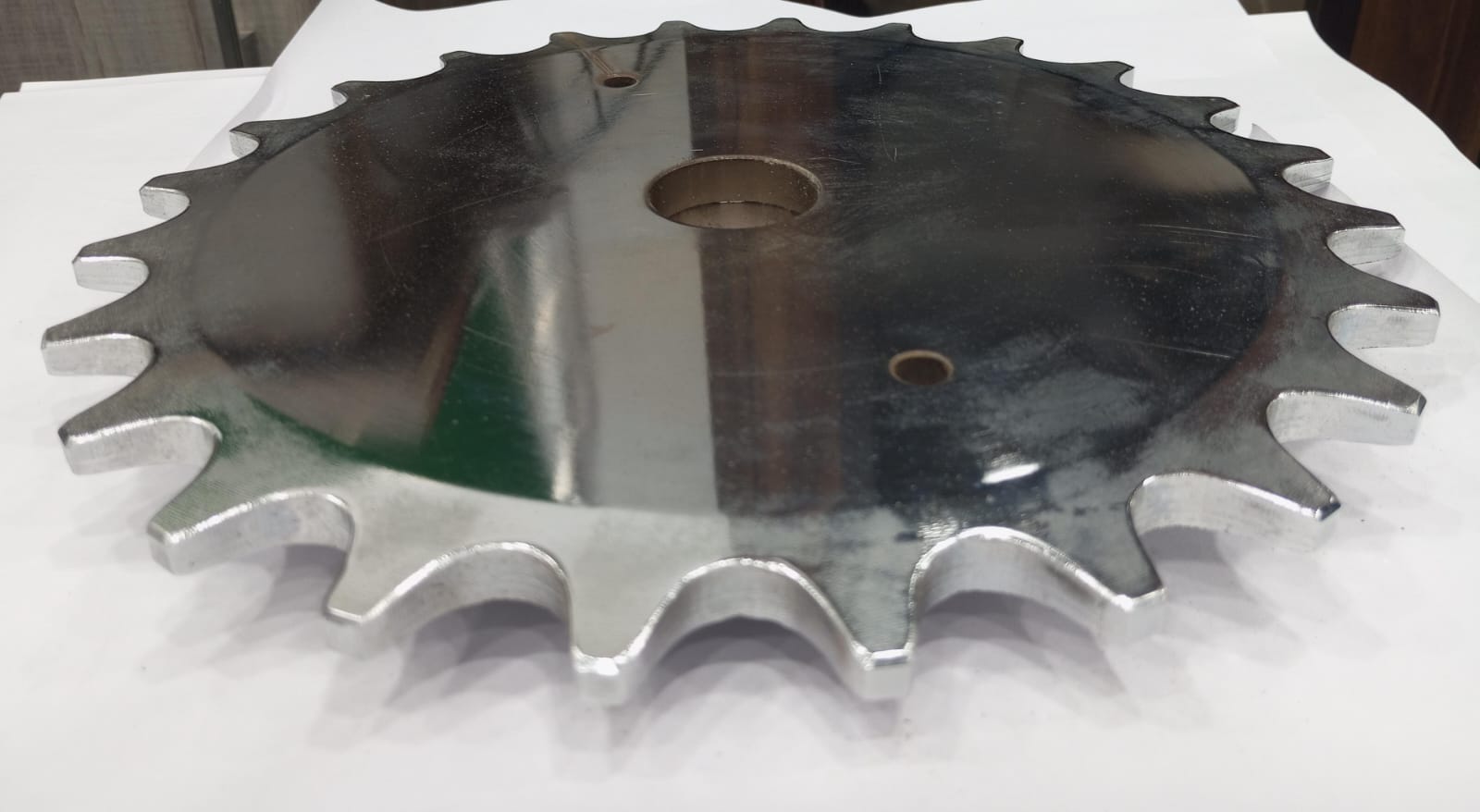

RS100-1B-22T Simplex Sprocket for Z-Elevator Conveyor
Part Code: RS100-1B-22T
Part Name: Simplex Sprocket for Z-Elevator Conveyor
Part Name: Simplex Sprocket for Z-Elevator Conveyor
Part Code: RS100-1B-22T
Usage: This Sprocket Used in Z elevator conveyors in food packaging companies.
Application of Z-Elevator Conveyor Sprocket
Engineered for Vertical Product Handling:
Designed specifically for Z-type bucket elevator systems, this sprocket ensures smooth and consistent vertical lifting of products between multiple stages of automated packaging lines.
Optimized for Food & Packaging Operations:
Ideal for lifting pouches, snacks, granules, bottles, and small food items where stable, controlled movement is essential for maintaining speed and accuracy in modern packaging plants.
Industry-Ready for Automated Material Transfer:
Widely used in food packaging units, snack factories, beverage processing lines, and by system integrators developing vertical conveying solutions for high-efficiency production setups.
Summary
A reliable sprocket designed for Z-type elevators, delivering stable vertical lifting, smooth chain engagement, and consistent performance across modern automated food and packaging lines.
| Parameter | Value / Description |
|---|---|
| Application | Used in Z elevators (Z conveyors) for vertical material lifting and transfer in food packaging companies |
| Chain Standard | ANSI 100-1 (RS100-1B) Simplex Roller Chain |
| Number of Teeth | 22 |
| Pitch | 31.75 mm (1.25") |
| Pitch Circle Diameter (PCD) | 223.10 mm |
| Outside Diameter (OD) | 239.9 mm |
| Tooth Width | 19.15 mm (at top land) |
| Face/Overall Width | 53.20 mm (main body + hub features) |
| Hub/Boss Overall Dia. | 69.00 mm (hub end); 56.00 mm (shoulder fit); 52.00 mm (bearing seat) |
| Hub (bearing seat) | Ø52.00 +0.02/+0.00 mm (main fit); Ø32.00 +0.20/+0.10 mm (bore) |
| Shoulder width | 35.00 mm |
| Keyseat/Bore Details | Bore Ø32.00 mm (main center, as per your drawing) |
| Relief Chamfers | 2.00 x 45°, 3.00 x 45°, and fillets as per details |
| Slot/Feature Details | Shown includes relief, special side details, profile |
| Material Property | Mild Steel (MS) |
| Surface Treatment | Powder Coating |
| Induction Hardening | Recommended: 0.05–0.15 mm case depth, 40–45 HRC for high cycle durability |
| Teeth Details | As per DIN Standard profile |
| Total Weight | Approx. 5–8 kg (estimated) |
| Sample Chain Pull (F) | 2500 N (typical for Z elevator) |
| Sample Sprocket Speed (N) | 30 RPM |
| Sample Torque (T) | ~89 Nm |
| Sample Power (P) | ~0.29 kW |
