RS80-1B-22T Simplex sprocket for H-Beam PTW Welding Machine
Part Code: RS80-1B-22T

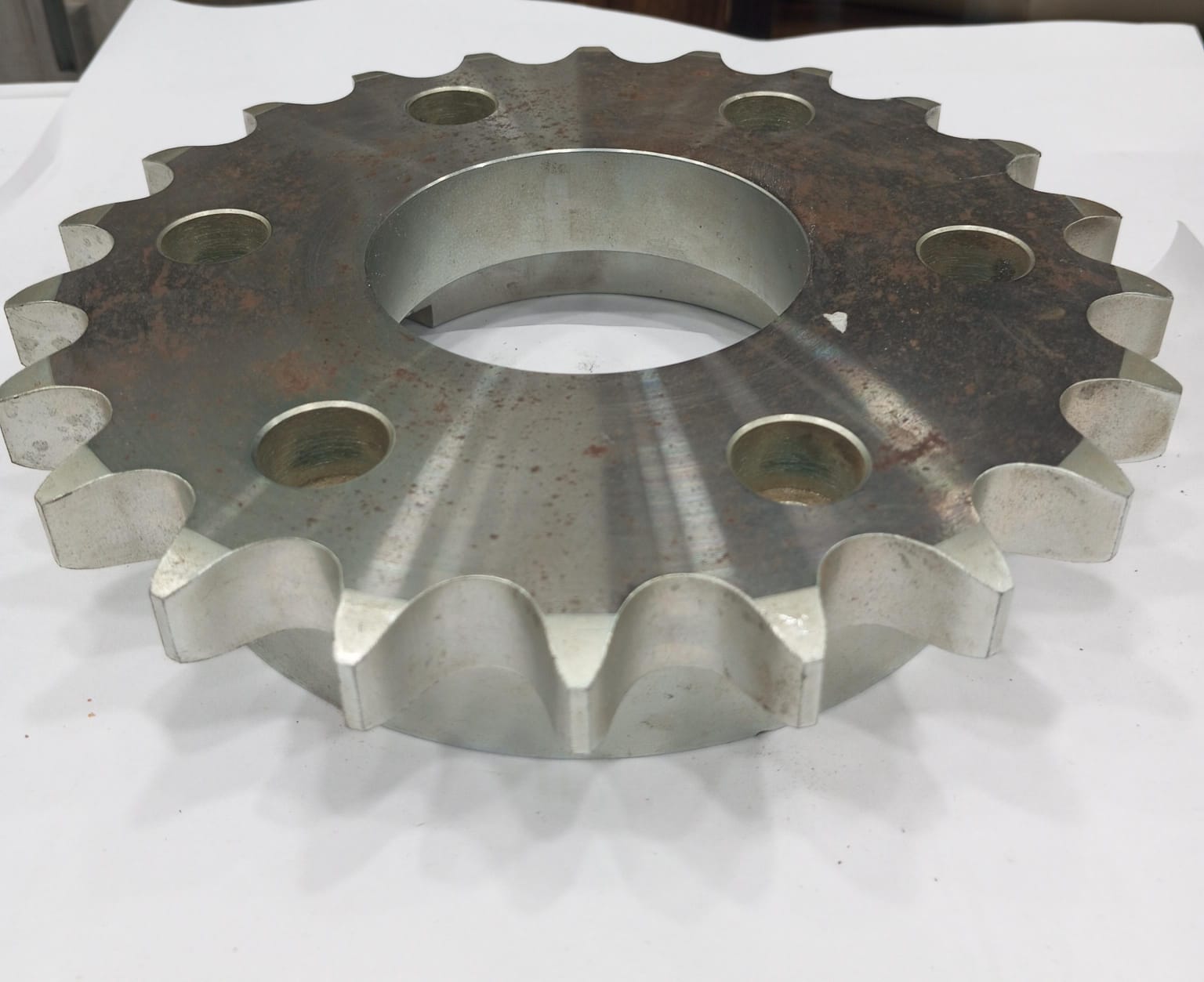

Part Name: Simplex sprocket for H-Beam PTW Welding Machine
Part Name: Simplex sprocket for H-Beam PTW Welding Machine
Part Code: RS80-1B-22T
Usage: This Sprocket Used in H-beam PTW welding machine for chain drive and steel movement.
Application of H-Beam PTW Welding Machine Sprocket
Engineered for Precision Steel Handling:
Designed specifically for H-beam PTW welding machine lines, this sprocket ensures stable, synchronized chain drive performance required for positioning, aligning, and moving heavy steel assemblies during automated welding operations.
Optimized for Heavy-Duty Fabrication Lines:
Perfect for structural steel manufacturing where large beams demand vibration-controlled, high-strength power transmission to maintain weld accuracy and production efficiency.
Industry-Ready for Welding Automation Systems:
Widely used by leading welding automation manufacturers and system integrators building H-beam lines, multi-axis welding setups, and industrial fabrication machinery.
Summary
A high-strength sprocket engineered for H-beam PTW welding machines, delivering consistent chain transmission, reduced vibration, and precise steel movement in advanced fabrication environments.
| Parameter | Value / Description |
|---|---|
| Application | Used in the manufacturing of H-beam PTW welding machines for roller chain drive in heavy steel fabrication lines |
| Chain Standard | ANSI 80-1 (RS80-1B) Simplex Roller Chain |
| Number of Teeth | 22 |
| Pitch | 25.40 mm (1") |
| Pitch Circle Diameter (PCD) | 130.0 mm |
| Outside Diameter (OD) | 192.0 mm |
| Hub/Boss Diameter | 75.00 mm (main fit), 110.00 mm (shoulder max) |
| Hub Overall Diameter | 150.0 mm (base flange), 46.00 mm shaft bore |
| Hub/Body Widths | 56.40 mm (total flange thickness), 20.00 mm (shoulder), 40 mm main hub width, 25.00 mm extended boss |
| Keyway/Bore Details | Bore dia. 46.00 +0.03 mm; 4 x Ø13.50 mm mounting holes on 130 mm PCD |
| Face Width (Total) | 16.40 mm (sprocket plate) |
| Chamfer | R26.99 mm radius on hub end, 6.50 mm face step |
| Mounting Holes | 4 x Ø13.50 mm THRU (bolt circle) |
| Material Property | EN-8 (medium carbon steel) |
| Surface Treatment | Blackening |
| Total Weight | 4 KG |
| Teeth Details | As per DIN/ISO Standard profile |
| Sample Chain Pull (F) | 3500 N |
| Sample Sprocket Speed (N) | 25 RPM |
| Sample Torque (T) | ~228 Nm |
| Sample Power (P) | ~0.60 kW |
